Cooling Systems

Cows tolerate very well temperatures between 1 e 21°C. Above 21°C, in condition of standard relative humidity, the unease begins. The signals of heat stress occur with an increase of rectal temperature ( above 39,1°C), increase of breath frequency, decrease of milk production and ingestion (John J. Tyson, Extension Educator del Dairy Team 2012). TDM offers you a wide variety of solutions for the ventilation of your cows which allow you to check the microclimate of the farm and help the animals to overcome unscathed the periods characterised by high temperature, as it happens now very frequently during our summers. Our fans, thanks to the particular blade design, allow to move uniformly a higher air flow rate in comparison to the other ventilation systems currently on the market, lowering the heat effectively.

Why choose our fans?
• Simple and strong
• Low noise and high energy savings
• High flow rate with low round per minute
• Uniform air distribution
• Brushless motor (inverter equipped in the motor)
The ventilation systems can be managed in manual mode (on/off) or by elaborated solutions able to regulate the functioning of the entire system based on temperature index and environmental humidity ( THI index ) detected by appropriate probes. It is also present an anemometer to monitor the wind intensity
È presente anche un anemometro per tenere sotto controllo l’intensità del vento e fermare automaticamente i ventilatori nel caso questo fosse troppo forte. Se necessario si possono definire nella medesima stalla zone diverse con impostazioni diverse.

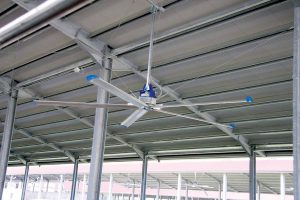

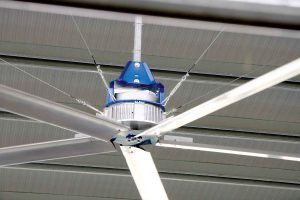

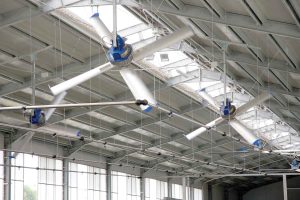

Ceiling fan model Air 2

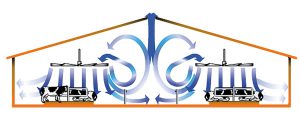

We are talking about a fan with blades placed in horizontal position in relation to the ground. Its task is to move a great quantity of air at a low speed in order to grant a constant air circulation in the environment in which the animals live, dispersing the gas that could be stagnant in the barn (ex. ammonia ). Equipped with a brushless motor ( with integrated inverter ) they can grant very low energy consumption and a low noise.
Availabel diameter version Air 2
– All models have the same 5-blade rotor
– Available diameter are: 2,5-3-4-5-6-7 meters

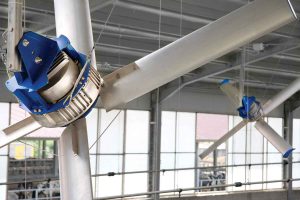

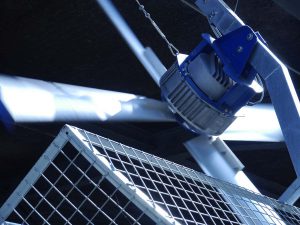

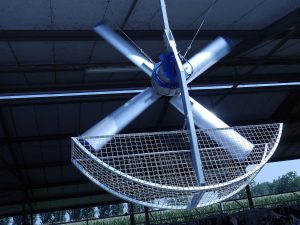

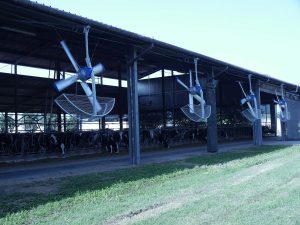

Cross model

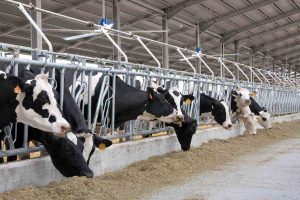

It is a motoinverter fan with blades D. 2,5 m. This type of fan is mounted with an inclination of 70 degrees in relation to the ground. Its task is to move air at a speed above 3 m/s which is pointed directly on the animals. Its use is combined and alternated with water usage. In the first phase the animals are wet with a big drip system (not sprayed water) and when water stops, the Cross fan has to dry the animal skin, lowering in this way its body temperature. The air and water cycles are automatically interchanged at programmable and customizable intervals. The ideal position for these fans is the feeding lane (we cool the cows while they get fed ) or the waiting room for the access to the milking parlour.

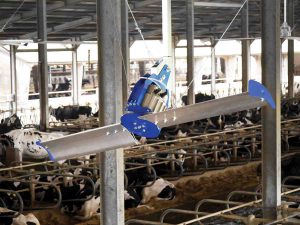

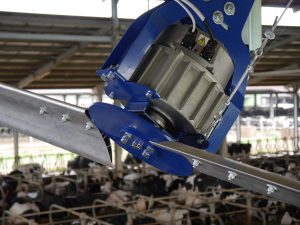

Mini Cross Model

As per the Cross fan from which it derives, the Mini cross is installed with an inclination of 70 degrees in relation to the ground and it is applied in the same areas of the barn in which the cross model is installed. The presence of only 2 blades, a smaller brushless motor and a faster rotation are able to reach a surprising combination between the speed of displaced air and energy consumption. Mini Cross model represents a competitive solution in terms of prices and grant high performances in addition to very low operational costs.

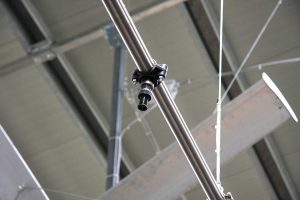

Big drip cooling system

Authoritative researchers have showed that the most efficient cooling system for milking cows is the direct one. TDM has started using this system some years ago and it can be adaptable to every kind of barn.

Technical characteristics:
A stainless steel tube characterized by brass nozzles is installed along the feeding lane and it distributes big drip water directly on the animals. This sysem is usually combined with the installation of a ventilation system, as our Cross model, with whom we are able to lower the body temperature of the animals thanks to the air movement. After being wet with the sprinklers, the animal is dried by the fan which allows the water evaporation on the animal skin. The rpovision of water is managed by a command electric panel according to the internal environmental conditions of the barn. The locasied diffusion of the big drip water avoids problems concerning anomalous fermentation in bedding and manger. Simple installation and low maintenance.
